Tag: plying yarn

Colour-changing yarn spun from a distaff

On By vikkihaffendenIn British wool, craft, creativity, dyeing, fibre, fibre preparation, hand spinning, hand spun, making, spinning, Textiles, Uncategorized, Wool, yarn2 Comments

I’ve had a number of different colour hand dyed carded batts sitting waiting for me to find inspiration. They are all from fleece I have scored and carder myself, so are a mix of Shetland, Suffolk and Texel, with maybe a little Alpaca blended into some of them. Some are in 200g amounts, some less. I’d got a bit stuck about how to use them until I saw a useful tip by Anna from my spinning group that she has put on YouTube.

Before you start, select a group of colours that work together. After a designing session during which I wrapped different colours together, I chose five: orange, pale green, mid blue, pale blue and lilac.

Anna used a combination of hand dyed and commercial roving, but the principle is the same with your own carded batts.

1. First of all split the roving/batt into the required lengths, (I just used the whole length of the batt of my drum carder).

2. Then split each length lengthwise into 4, (or more, depending on the thickness of the roving/batt).

3. Next, lay out the colours lengthwise, next to each other in the order you want to spin them into yarn. Test this beforehand to see how they mix throughout one repeat of a yarn, and if this works for your chosen outcome, such as knitting.

4. Repeat the colour sequence three more times so you have a table full of ‘stripes’ of fibre. If you have more than four lengths let colour, carry on until all are used up.

5. Now this is the clever part. I have hand spun colour changing yarns before and got the sequence wrong because I put it all away in a box between spinning sessions. To keep the sequence do the following.

6. Take a metre + long length off ribbon and tie a pencil or empty pen across one end. This is your fibre-stopper. Tie a hand-sized loop on the other end. This is your distaff.

7. Starting at one end of the ‘stripes’, wind each length off fibre into a loose roll and slip the looped end of the ribbon through the centre hole. Carry on doing this, working methodically through the fibre lengths, keeping the colour order as mapped out in your ‘stripes’.

8. You will end up with a ‘necklace’ of colour ordered fibre rolls on the ribbon. Tie the ends together to stop the fibre sliding off.

The dyed fibre arranged on the ribbon distaff before spinning

Now to can put them in a box and they won’t get muddled. To start spinning, simply lift the necklace out, untie the ends, and slip the loop over your hand. It acts as a distaff and will hold your fibre nicely as you spin each colour.

Spinning the lengths into singles

What a great tip!

I plied the colour changing yarn with a single spun made from navy blue Corriedale. This made a lovely marl yarn that to me resembles stained glass windows. I can’t wait to see what it looks like knitted.

The plied yarn

Here is the link to Anna’s video

Acid dyeing handspun remainders

On By vikkihaffendenIn alpaca, British wool, dyeing, hand spinning, hand spun, knitting, spinning, Wool1 Comment

A recent stock-take of the various bits of hand-spun yarn sitting on bobbins I now want to use for other projects inspired me to ply them all up and dye them into interesting yarns. Only small quantites of most, but great for small items.

One was a test of blending Tussah silk with Lleyn fleece, and I plied this with some nice soft spun Dorset singles. The silk added a pleasant dry handle to the plied yarn, and the noils added texture. There was more Dorset singles left, so I plied these together as a separate yarns. Next I plied two ends of Suffolk together, they were somewhat different thicknesses and twists, so made a slightly uneven, spiralled yarn. Finally I worked with a lovely colour changing singles, spun from a blend of Alpaca and Texel (cream) and Black Alpaca and Dark Grey (almost black) Suffolk fleece. The Alpaca blends had been carded in stripes on the drum carder so that when it was spun off the batt it alternated in dark and then light lengths. I plied this with a pale grey Suffolk single that I had acquired from a farm in Hereford last summer.

  • Stripe carding blended fibres
  • Bi-coloured rolags

All these came out as interesting yarns in their own right, but I wanted to add some COLOUR. So I got out the dye kettle and the acid dyes. After some thought I decided to aim for a Deep Red and a Blue-Violet. I’ve been trying to be more technical about my dye mixing, and so with the aid of an Excel spreadsheet I have devised, I carefully mixed the solutions, but the Blue-Violet still emerged as Violet.

There was 66g of the Dorset and Suffolk/Dorset, and they went into the Red dyebath, whilst the 45g of Lleyn/Tussah/Dorset went into the Blue-Violet bath and they gently cooked away for an hour or so.

Part of my improved technique is to use a jam thermometer to keep the bath below 90C, preferably just above 89C to prevent felting. I also walk away so I am not tempted to STIR IT! The only stir I am allowed is after teh bath gets to temperature, when I gently remove the yarns, add the vinegar and stir it in. I read that doing this allows the different colours in the mix to be absorbed into the yarn (or fibre), before the acid does its work to set the dye to the fibres. Both these techniques seem to work well for me as I am getting less felting and more even, accurate colours (apart from the Blue Violet of course).

The dye baths were not exhausted – I had worked with a 2% colour to fibre weight ratio for medium depth of colour – so the lovely tweed ply was dip dyed into both pots, leaving mid-sections of the natural tweed plies undyed. I felt this needed a third colour to lift the others, so a very small section between each of the main colours was dipped into a weak yellow dye.

Dark red in front, dip dyed tweed in the middle, blue-violet at the back. You can just see the texural Tusssah silk blended purple yarn.

I’m really pleased with the products of the session – carried out whilst I watched the new TV programme ‘Roadkill’. Unfortunately I was a bit stupid, or maybe it was the effect of the programme I was watching, and whilst mixing a new batch of yellow stock solution I mindlessly poured boiling water onto the dye powder in a plastic jar. Of course the jar melted, buckled sideways and then toppled to the floor before I could catch it. Waves of strong yellow dye flooded the kitchen floor (I am exaggerating, it was only 150ml or so, it just felt like waves). It took five washes to clean the floor so that no-one would walk yellow onto the beige carpets, and my socks will never be the same again! Plus I had to start again with the stock solution. I did debate mopping the floor with some yarn, but decided that might be too hit-and-miss even for me…

In fact this morning, whilst hiding from the dog, (don’t ask why) I noticed a snail-trail of yellow dye snaking down the side of the kitchen cabinet – how did I miss that one?

What am I going to use the yarns for? I think a warm hat to cheer me up with its bright colours during this depressing winter-to-come is on the cards. I might knit it by hand or I maybe use my Brother KH260 chunky machine, and hope to report back on here when its finished.

Footnote:

Leaving the dye overnight in the pots – I was tired after all that floor-mpopping – the next morning I decided to finally extract the last from each one. So 50g of Dorset fleece went into each, and I got a rich coral pink, and surprisingly bright lilac for my troubles. It was so rewarding to empty clear water out of the dye baths afterwards.

Waste-not-want-not is a good motto.

Felted singles

On By vikkihaffendenIn British wool, craft, creativity, dyeing, fibre, hand spinning, hand spun, making, naturaldyeing, spinning, Textiles, Wool, yarnLeave a comment

Having read about this spinning technique I though I’d have a go. It doesn’t save much time as you still have to run the yarn back through the wheel, which takes as long as simple plying. It was prompted by my practise at making a ”Z’ twist fat singles’ and so I decided to over-twist this singles yarn as I practised the night before a dyeing session. So I treated it cruelly when washed it, and also in the hot dye bath as well.

As there were several colour dye baths it was too tempting not to dip-dye the hank. Firstly it went into red-cabbage allover, and then the ends were dipped into madder and turmeric.

This is what it looked like before hot washing and dyeing.
And after re-spinning it’s open up nicely and is quite soft.

I’ll be trying this out soon to see what it looks and feels like as a knit.

Visit to Diamond Fibres – wool processors

On By vikkihaffendenIn British wool, craft, creativity, fibre, fibre preparation, spinning, Textiles, Uncategorized, Wool, yarn

Today I accompanied a group of students on a visit to Diamond Fibres in Horam, Sussex. The company processes wool for worsted spinning, rather than woollen spinning, so concentrates more on longer staple fleece.

Starting in the sorting shed, we were shown round by Roger, the owner, and given a really thorough introduction to the processes involved in changing raw fleece into yarn.

There was a Wensleydale fleece on the picker, which Roger explained had already been washed once at 60 degrees to remove the first lot of dirt and oil and then dried. After picking, which would open up the compressed curls that the first wash had not reached, it would be re-washed and dried before further processing. He reckoned that it may in fact require a third pick and wash.

The students were looking tired just at the thought of this!

Following picking, the next process is carding the fibres to start aligning them in parallel into a continuous ”sliver’ of fibre. Unlike my meek little hand carder, they have a carding machine with 16 drums of metal, not wire, teeth. At this stage, any short fibres will still be in the sliver, it isn’t until combing that these will be removed.

The sliver begins to look more like something that is spinnable, but there are still thin and thick sections along its length. To eliminate these and even out the sliver it goes through ‘gilling’. Diamond have two of these machines. The first one has wider spaced teeth, and is used at this point, whilst the second is much finer and bulks up and evens out the sliver later on after combing.

When the sliver goes into the gilling machine, two are fed in at once, producing one thicker sliver of uniform thickness.

The fibre will in all likelihood go through a second gilling, during which the output sliver gradually bulks up, according to the machine settings, to achieve the required grams per metre.

If the requirement is for carded roving for hand spinning, this will be the last process. It may even be stopped earlier on, depending on what condition fibre is required.

If however, the desired outcome is combed sliver, then it has to go through the combing machine. This takes up to sixteen slivers side-by-side through the combs, crimping the final sliver to compress the fibres together and prevent breakage. It looks like doll’s hair emerging from the machine. Any remaining short fibres, nepps, noils or debris fall out into a waste bin beneath the combs.

This combed sliver has become slightly uneven during the combing process, and this is when it goes through the finer gilling machine to produce a consolidated, even sliver ready to have a small amount of twist introduced, (about four turns per inch) to make a softly twisted roving.

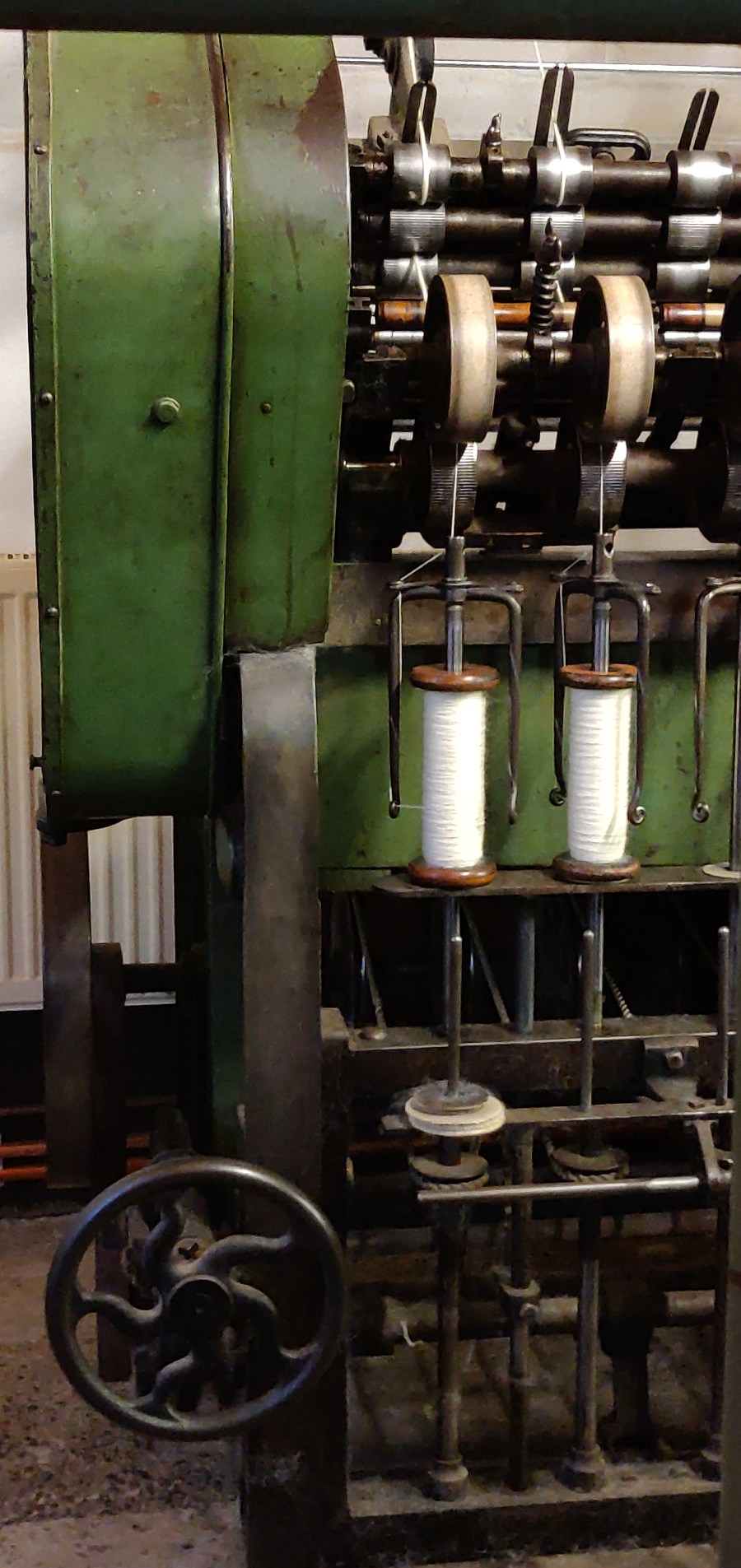

This roving is then drafted out into a thinner roving, and finally drafted and spun into singles weighing approximately 0.2g per metre. Amount of twist can be controlled to produce softer or firmer yarns at both singles and plying stages.

The singles can be plied into 2, 3, 4 etc ply yarns according to need. 2 ply tends to be flat, 3 ply rounded, and 4 ply has a square profile. To make a cable yarn, 2 x 2ply can be twisted together.

2ply yarn made from two of the 0.2g/metre singles would weigh approximately 0.4g per metre. This would yield something like 250 metres per 100g, which is within the DK category of yarn, and will be between 12-14 WPI.

Of course, as Roger pointed out, natural fibres do not conform as precisely as synthetics do, so there are highly likely to be variations in weight to length of a hank of yarn depending on humidity and other physical conditions when it is weighed. Oh the joy of natural fibres, thats why we love them!

I think the students now really appreciate how much work goes into making the yarns they pick off the yarn-store shelf. One even went so far as to say that they would never again complain about yarn being so expensive!

Satisfaction is a bobbin of plied yarn

On By vikkihaffendenIn British wool, craft, creativity, fibre, hand spinning, making, spinning, Textiles, Wool, yarnLeave a comment

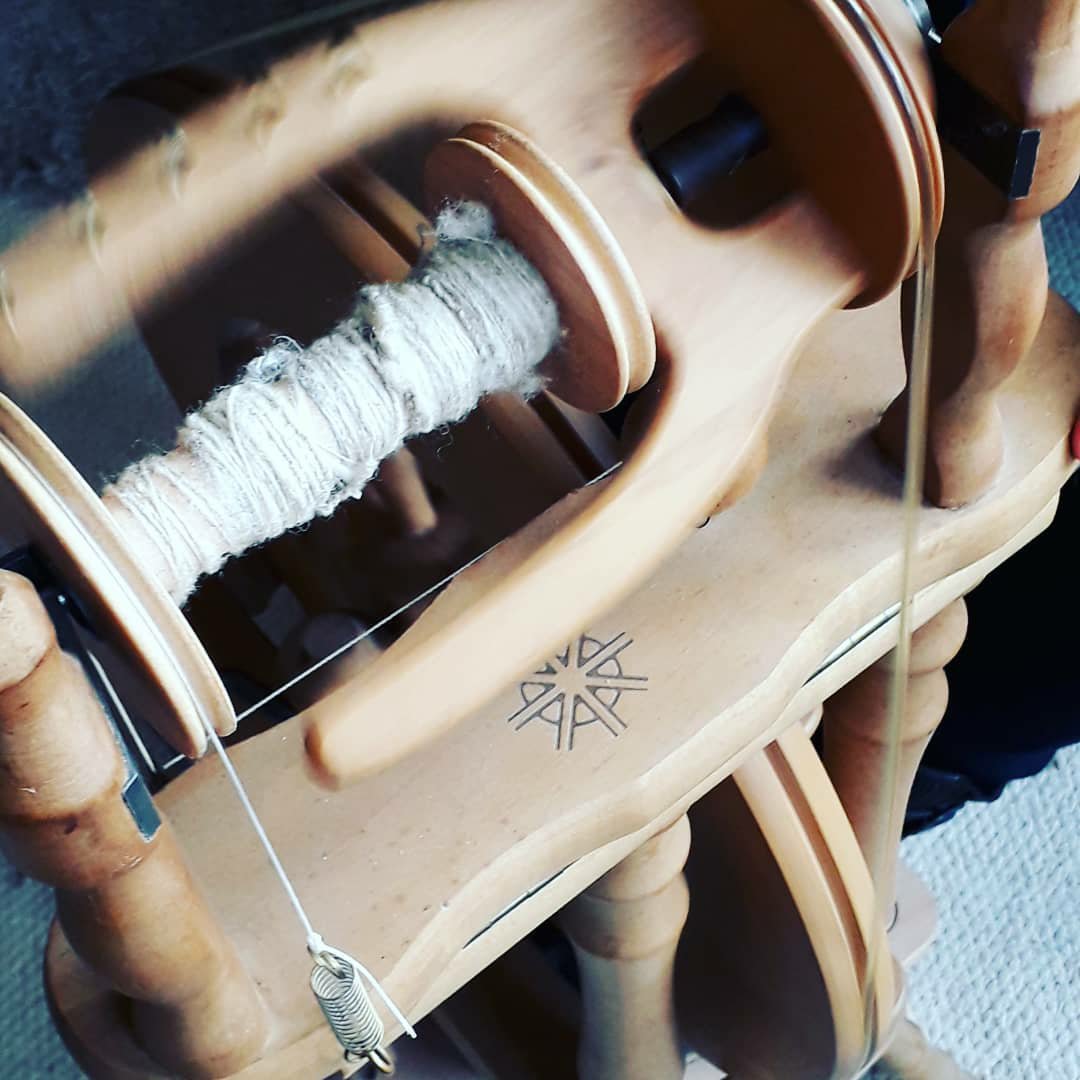

I love the final plying process when spinning yarn. This is Texel and Clun Forest wool fibre, processed from raw fleece. One single of each as an experiment.

I find it very difficult to get a smooth yarn from my own prepared raw fleece. It’s pretty easy from commercially prepared tops, but getting all those little nepps and second cuts out is pretty impossible for me.

I’ll wash this and see how it comes out.

Wild Chalk: a celebration of the natural world of the South Downs

On By vikkihaffendenIn Andean plying, British wool, craft, creativity, fibre, hand spinning, hand spun, making, spinning, Spinning wheels, Textiles, Uncategorized, Wool, Workshop, yarn1 Comment

The South Downs are home to the Southdown breed of of sheep, the wool from which can be used for hand spinning. So to support the local Shout Downs national park and sheep farmers I joined several other members of my local spinning group, Woolly Umbrella, and took my skills (basic as they are) along to Wild Chalk. This free event, organised by the South Down National Park Rangers, was held in East Brighton park. Our part was to demonstrate spinning wool and encouraged people to have a go. I took along several drop spindles and a sack of washed fleece. Others brought along a spinning wheel, drop spindles and needle felting to share, plus an exhibition with some beautiful examples of naturally dyed, handspun wool. Most people were spinning the local Southdown fibre but mine, to my shame, was Texel cross Southdown.

As you can see children and adults alike really loved to watch, and most of them tried spinning from fleece to some extent or other.

I practised with a newly acquired Turkish spindle and using the Andean Plying technique even produced some reasonable 2ply.

Spinning wheel drive ratio – getting down to the nitty gritty, and learning to control my tendency to over-spin yarn

On By vikkihaffendenIn British wool, craft, creativity, hand knitting, hand spinning, hand spun, making, spinning, Spinning wheels, Textiles, Uncategorized, Wool, yarnLeave a comment

Spinning wheel drive ratio is the number of times the bobbin revolves whilst the drive wheel makes one revolution. It is governed by the size of the whorl that drives the bobbin. There is of course the effect of any brake to be considered as well, but this has to be adjusted to get the yarn to wind onto the bobbin and is not the same as the drive ratio.

Most modern wheels offer different ratios by providing several different sized whorls on the bobbin or flyer. Probably because my upright double drive is an old wheel, and I mean old, wobbly and fragile – one that would be termed ‘vintage’ on eBay, it only has one ratio (it only has one whorl on the bobbin). I tend to over-spin when using this wheel, so I wanted to teach myself to make softer yarn and thought understanding drive ratio might help me. Being a bit techie and liking to understand how things work, I decided as a first step to check out what the drive ratio is on my upright double drive wheel.

Using advice from ‘Spinning Wool – beyond the basics’ by Anne Field, I started the process. Firstly I removed any yarn from the orifice and bobbin and slackened the tension screw to the lowest setting. Next I tied a tag of yarn on one arm of the flyer as a marker, and aligned this arm with the rear maiden. Now, using my hand I turned the wheel one complete revolution, counting how many times the tag of yarn passed the rear maiden. This figure is the drive ratio of the wheel as it is set up (remember that a different sized whorl will give a different ratio). In this example, the bobbin revolved 6 times during one revolution of the drive wheel, which means that my old double drive upright wheel has a 6:1 ratio.

Next in my experiment to spin softer yarn I trawled further advice from Anne Field. She suggests that the fibre itself can give you information as to how to spin it, and that frequency of crimps along the staple length of fibre can give you a clue about how the twist frequency. In her opinion a fibre with 7 crimps in 2.5cm, for example, is best spun with 7 twists per 2.5cm of singles. OK, I thought, so I pulled a staple from the Shetland fleece I am working with, and counted the crimps per 2.5cm. I used a magnifying glass to help me, and came out with a figure of 5 crimps in 2.5cm, which meant that I needed to aim for 5 twists in every 2.5cm of singles as I spun the fibre.

Once again I referred to Field’s book, and from the suggested methods for establishing a visual reference for the distance in which the twists should lie, I chose to mark 2.5cm on a piece of paper. I then taped this my lap whilst spinning. Other methods included marking these lines in your spinning apron, or using points on your fingers, e.g. tip of thumb to knuckle. This last one is the one I plan to move to once I am a bit more confident.

To re-cap, my aim, based on the Shetland fibre’s crimp, was to have 5 twists in 2.5cm of yarn. This meant 2.5cm of twisted yarn had to be drawn onto the wheel during one revolution of the drive wheel (5 revolutions of the bobbin), thus 5 twists would be inserted into that set length of yarn.

Anne Field estimates that approximately 1 twist will be lost in each 2.5cm of singles once the yarn is plied (although I am a bit hazy about how that happens), and so it seemed to me that I could spin the yarn with 6 twists per 2.5cm and finish with the 5 twists I wanted. This fitted in really neatly with the wheel’s drive ratio of 6:1, (1 treadle, and therefore 1 revolution of the wheel, turns the bobbin 6 times). This made me wonder whether this wheel was designed and made for spinning this type of wool from the older British breeds.

So by treading SLOWLY, drafting 2.5cm of fibre and releasing 2.5cm of yarn into the bobbin for each revolution of the drive wheel (one pedal motion), I actually managed to make a start.

To check how I was doing I stopped after a few metres of singles, pulled some back off the bobbin and let the yarn twist back on itself to emulate the final plied yarn. After evaluating the twist, and adjusting my spinning accordingly, I eventually managed to achieve approximately 5 twists per 2.5cm! Yes….I was getting it – slowly.

The resulting yarn is so much softer and fuller than my normal attempts – and a small hank is now drying in the bathroom for me to evaluate tomorrow.

My next step is to lengthen the draft and feed 5cm of yarn onto the bobbin in 2 treadles (revolution s of the drive wheel). In theory I can increase the length of draft and feed depending on the length of fibre I am working with, providing it has 5 crimps per 2.5cm.

I’m not sure what happens if there is more or less crimp, and therefore more or less twist required in 2.5cm. That is my next learning curve.

I may I have made some mistakes and probably over generalised, so welcome comments and advice.

Brighton Textile Art Group meeting 11th May

On By vikkihaffendenIn Andean plying, British wool, course, craft, creativity, hand spun, making, naturaldyeing, spinning, Textiles, Wool, Workshop, yarnLeave a comment

Well I did it, I made it along to the meeting today and joined the group. Thank you to all the kind members who made me feel so welcomed. There was a natural dyeing workshop today, but of course I had not booked in advance. However, I had taken along my Spurtzleur with some fibre being spun into singles as work in progress, and had some other singles I had spun earlier in my bag. So I finished off the singles on my Spurtzleur and plied this using my hands in an Andean ply. Then I did the same with the singles in my bag (they were from different fleece). This meant I had two little hanks to dye in the onion skin and the daffodil dye baths.

Click on the photo to visit the brighton Textile Art Group website and see what other events and workshops are in the future.

There is a little more detail of the day on my Natural Dyeing page.

Spinning days

On By vikkihaffendenIn British wool, craft, hand spun, making, spinning, Uncategorized, Wool, Workshop, yarnLeave a comment

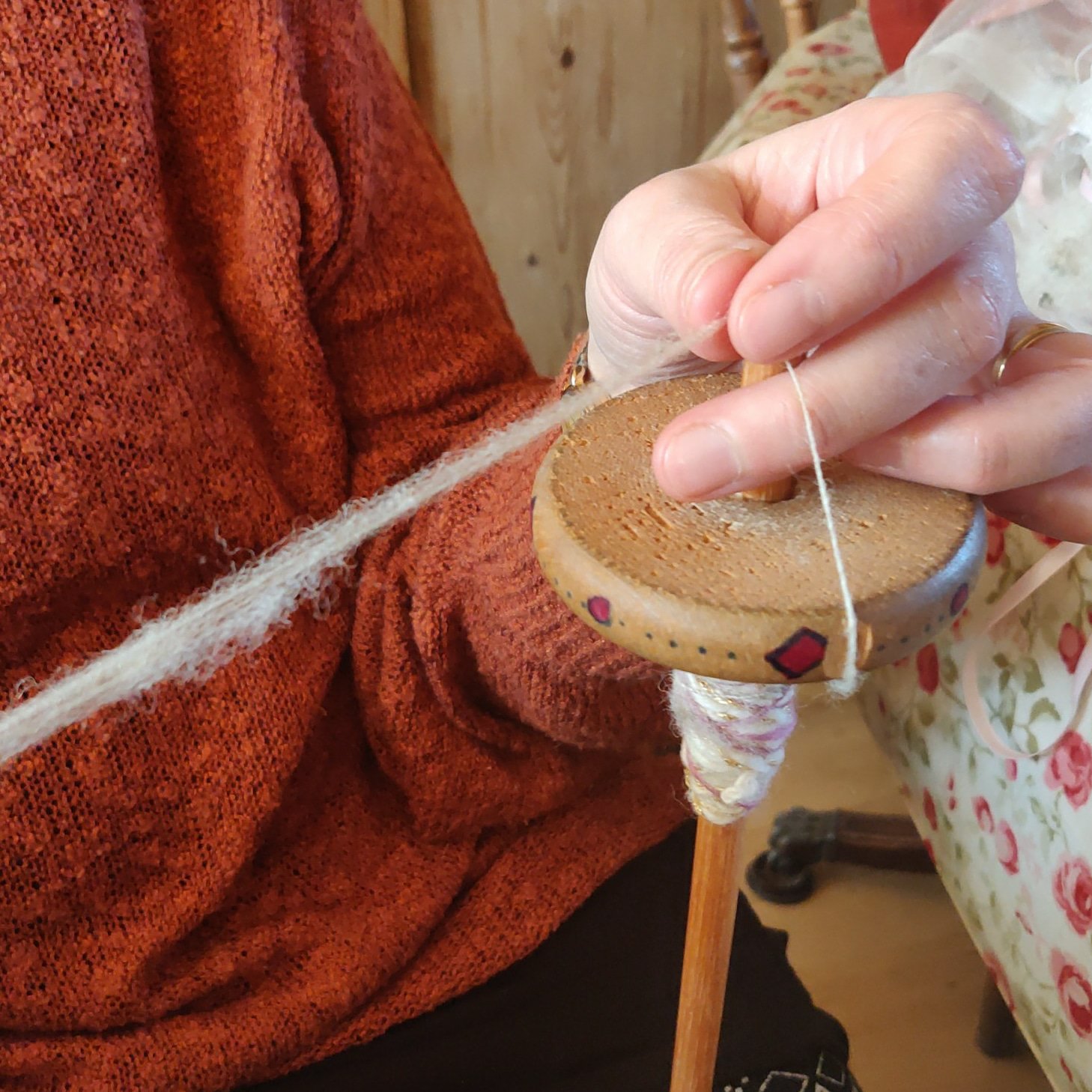

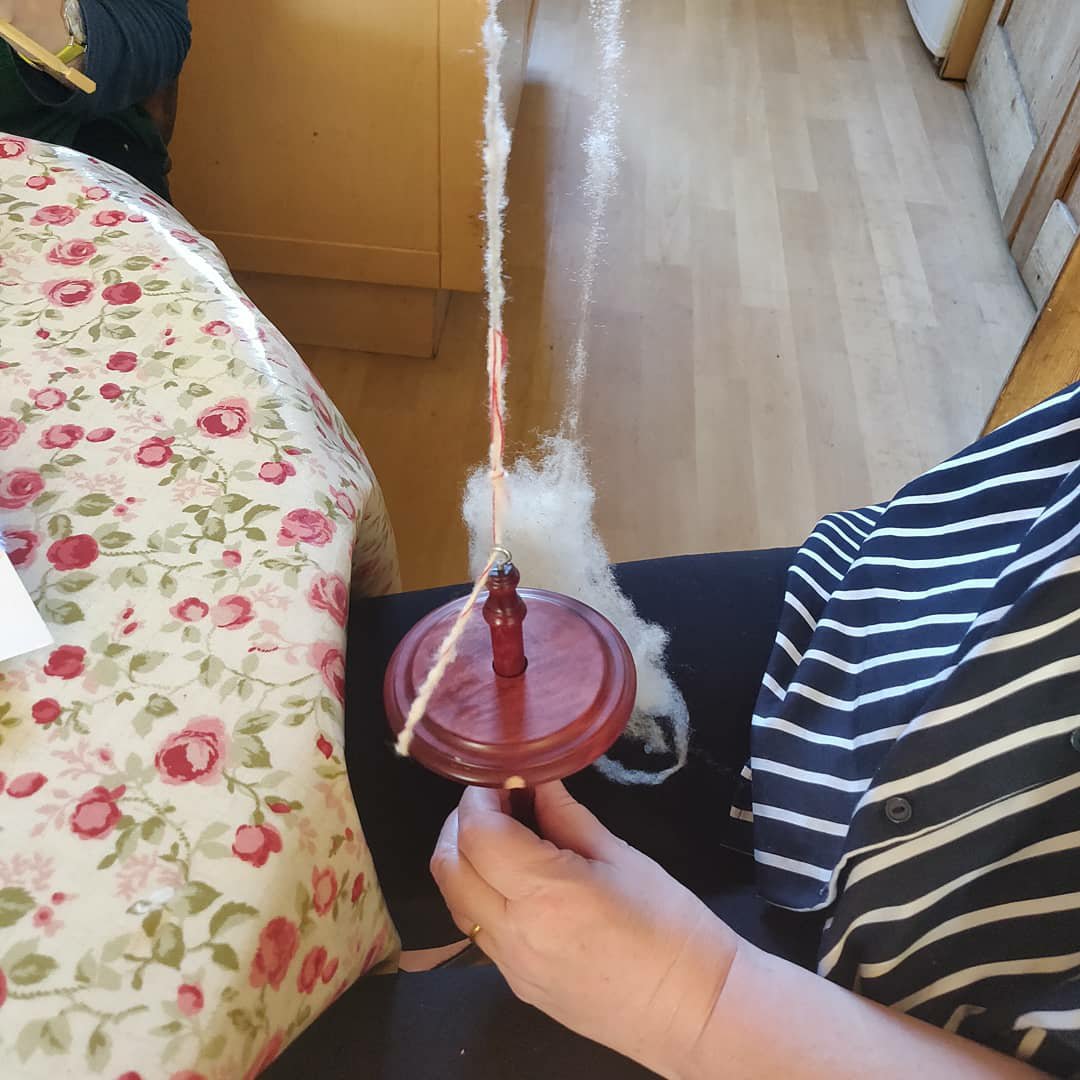

Last week I hosted a ‘learn to spin’ afternoon. We had drop spindles and two wheels. Because no-one had spun before I started with lengths of commercial my sun yarn – about 12 metres each. These were used to learn the basics of working the spindle and twist direction.

After everyone was feeling more confident, fibre was introduced. This was lightly scoured Jacobs fleece with a little oil left to make it easier to spin.

Strengthened by team and home made oat biscuits we progressed to the wheels.

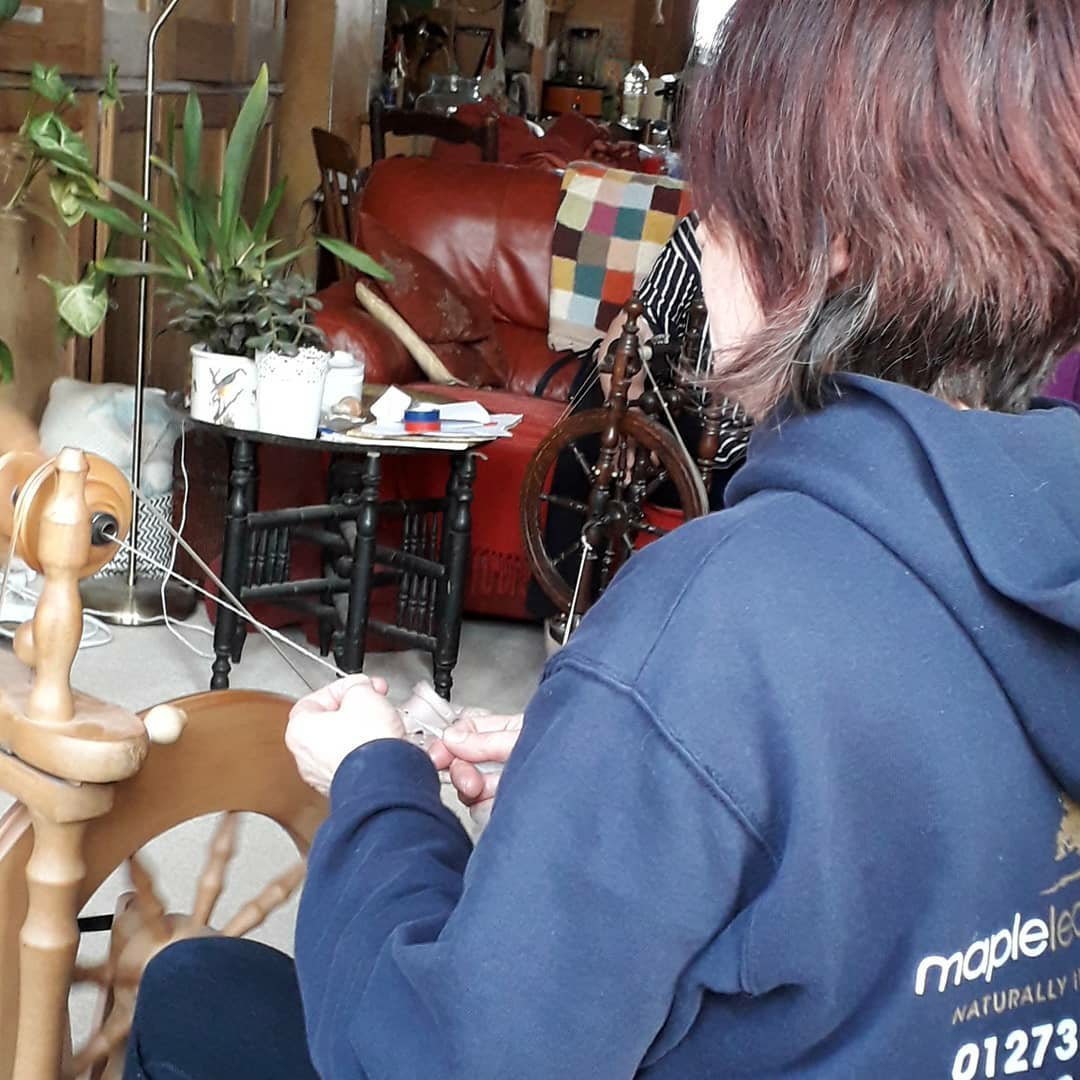

The Ashford single drive, double treadle Traveller was the most popular. But even that took some easing into.

Everyone got some yarn made.

We plan another soon.

Notes on spinning and plying

On By vikkihaffendenIn Andean plying, craft, hand spun, making, spinning, Wool, yarnLeave a comment

Spinning

Spinning is twisting fibres together to make a single spun yarn (singles). All sorts of fibres can be spun, but generally speaking, the longer each fibre is (it’s staple length), the easier it is to spin into a yarn. Singles yarn, especially those with more twist tangle back on themselves, and do not usually make good knitting yarns. They are weaker, and will produce a knitted fabric that lies crooked (bias).

When a yarn is spun, the twist of the fibres can only go in one direction, either ‘S’ or ‘Z’ . ‘S’ is is when the yarn wraps like the central diagonal of the ‘S’ and ‘Z’ is the opposite direction, when the wrap follows the central line of the ‘Z’ opposite. On a drop spindle, ‘S’ is created by the spindle being spun anticlockwise, and ‘Z’ is produced when the spindle is spun clockwise. On a spinning wheel the direction is controlled by the direction of the wheel itself.

Plying is twisting two or more yarns together so that they make one, thicker yarn. It is done for various reasons; it will balance single spun yarns and prevent bias twist, it creates a thicker yarn, it adds strength to delicate yarns, and it combines different colours and textures for aesthetic results and can be used to produce a combination of these results.

When yarns are plyed, they should be twisted together in the opposite direction from their original direction of spin, e.g. two ‘S’ spun yarns would be plyed in the ‘Z’ direction.

You can ply your own single spun yarn or make thicker and decorative yarn by plying commercial yarns together.

Decorative effects to try: threading beads/sequins onto one strand, using a fancy and plain yarn, twisting singles and then twisting them again with commercial yarns in the opposite direction to the first twist (cable plying).

Method 1: When plying the same yarn together. Wind a centre pull ball using a ball winder and taking the yarn from both centre and outside ball, ply them together on a spindle.

Method 2: When plying the same, or two different yarns together. Wind the two ends of singles (or commercial yarn) together into a double ended ball, tie the end to the spindle and off you go.

Method 3: Andean Plying. Can be used in either of the above situations.

 Step 1: Hold your left palm facing you with the fingers splayed.

Step 2: With your right hand, take the end of the yarn, and tuck it into your watch band, sleeve, or hold it under your thumb. Do not lose this end!

Step 3: Take the yarn left around the the back of your wrist.

*Step 4: Bring it across the back of your wrist to the right side of your wrist

Step 5: Then take it left across your palm and around your middle finger from left to right.

Step 6: Next take it back around your wrist from right to left.

Step 7: Take the yarn to the right across your palm, and around your middle finger from right to left, then back to the left side of your wrist *

Repeat from * to *

Step 8: When all the yarn is wrapped around your hand, and making sure you don’t lose either end, slip the ring of yarn off your middle finger and twist the whole bracelet of yarn around your wrist so that this ring is on the back of your wrist.

If you need to take a break now, slip the main bracelet onto something like a toilet roll centre, being very careful to keep the ends visible.

Put the bracket back on your wrist. Once it is on your wrist keep your fingers splayed to prevent it slipping off whilst plying. Tie the two ends to the spindle or leader and start the spindle off. Use your fingers to feed the yarn evenly and control the amount of twist travelling up the yarns as you do when spinning.



This slideshow requires JavaScript.

4 ends of commercial yarn being plied using the Andean method. Finally it is wound into a hank. It could just be wound onto ball for knitting, but if a bit lively it may need to be hanked, steamed and hung before making into a ball.
This is a downloadable pdf of this page. Please note that you are welcome to print this for personal use, but it must not be  reproduced or distributed. Plying
